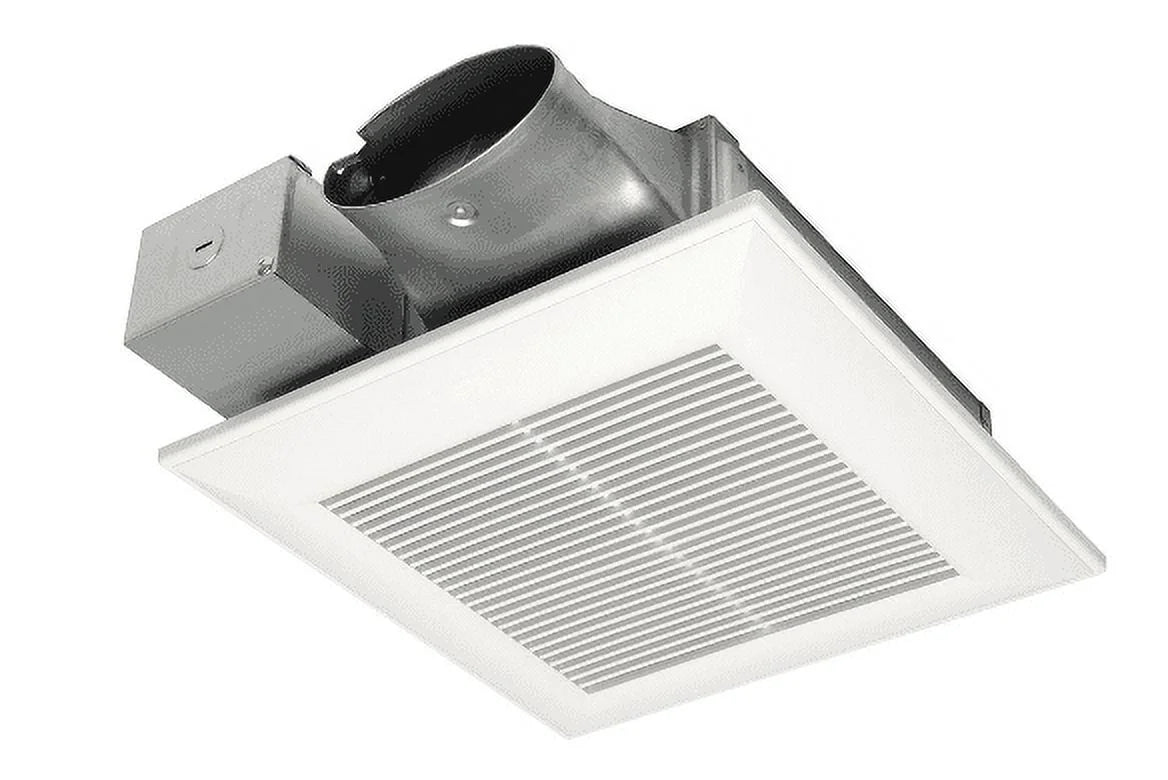

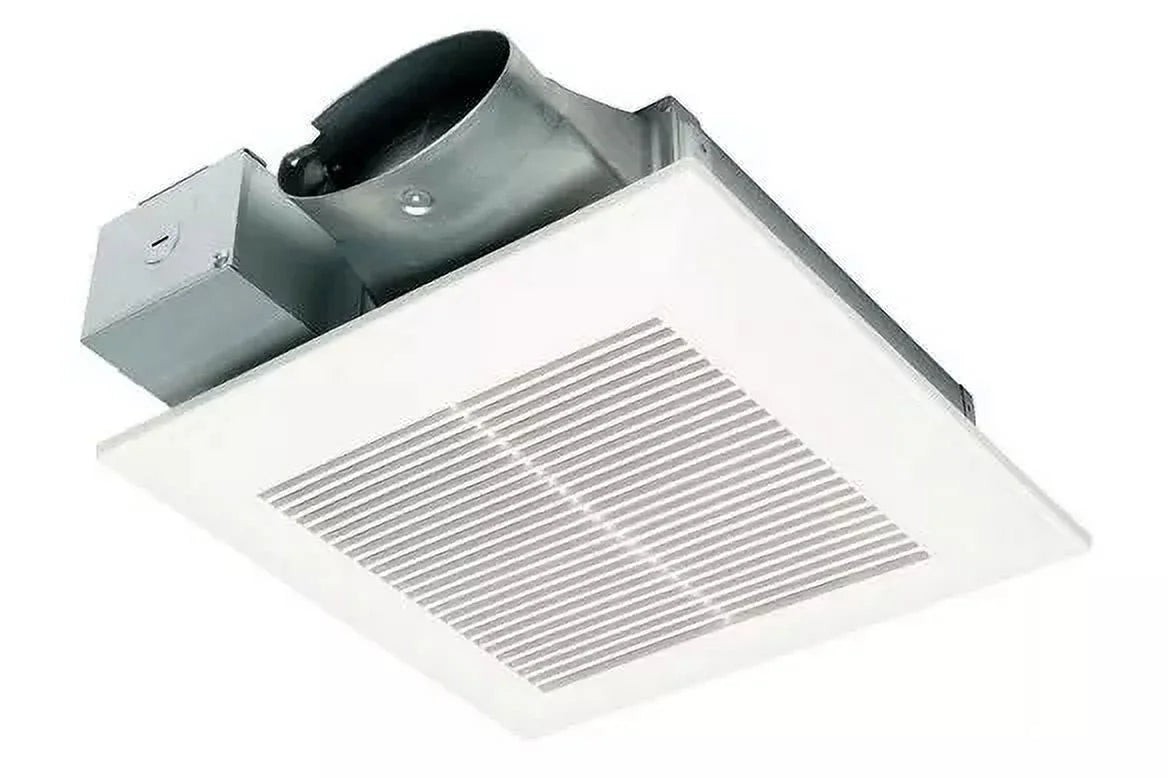

Panasonic WhisperValue DC Fan with ECM Motor and Pick-A-Flow, Built-in Condensation Sensor A7905

PRODUCT SPECIFICATIONS: Specification Description Air Volume Exhaust (CFM) 50 @ 0.1" SP, 52 @ 0.25" SP, 80 @ 0.1" SP, 81 @ 0.25" SP, 100 @ 0.1" SP, 101 @ 0.25" SP Master Carton Dimensions (HxWxD) 6.89 x 14.25 x 16.73 CFM 50-70. 80-110 Other Approved Codes and Standards ASHRAE 62.2, LEED, California Title 24, Washington VIAQ Construction Type Single-Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling. Current (Amps) 50 CFM= .08A, 80 CFM= .13A, 100 CFM= .18A Ventilation Design Approach Continuous Ventilation. Spot Ventilation Duct Diameter 4" Oval Energy Efficiency (CFM/Watt) 50 CFM= 12.1 CFM/W, 80 CFM=10.0 CFM/W, 100 CFM = 8.2 CFM/W ENERGY STAR® Certified Yes Fan Type Fan Only Grille Size (in sq.) 13" Industry Residential. Light Commercial Installation Ceiling Mount, Wall Mount (UL), Tub/Shower (UL) Motor Type (AC/DC) ECM Mounting Opening (in sq.) 10-1/2" Mounting Options Ceiling Mount. Wall Mount (UL). Tub/Shower (UL) Noise (Sones) 50 @ 0.1" SP = < 0.3, 52 @ 0.25" SP = 0.5, 80 @ 0.1" SP = less than 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 101 @ 0.25" SP = 1.3 Power Consumption (Watts) 50 CFM= 4.5W, 80 CFM= 8.5W, 100 CFM=12.4W Power Rating (V/Hz) 120/60 Product Family Name WhisperValue DC Radiation Damper Available Yes UL Listed for Tub/Shower Enclosure when GFCI Protected Yes PRODUCT DETAILS: WhisperValue® DC™ Fan with pre-installed condensation sensor helps control bathroom condensation to prevent mold and mildew. It is the lowest profile ENERGY STAR® rated ventilation fan available. Ideal for residential construction (Single & Multi-Family) and Manufactured Homes. It features Panasonic's revolutionary ECM motor with SmartFlow™ optimum CFM technology, and incorporates a Pick-A-Flow® airflow selector switch to customize airflow (50-80-100 CFM).
